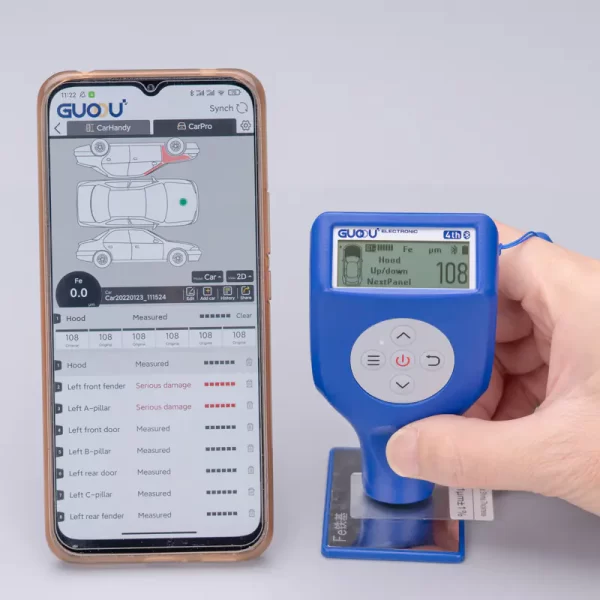

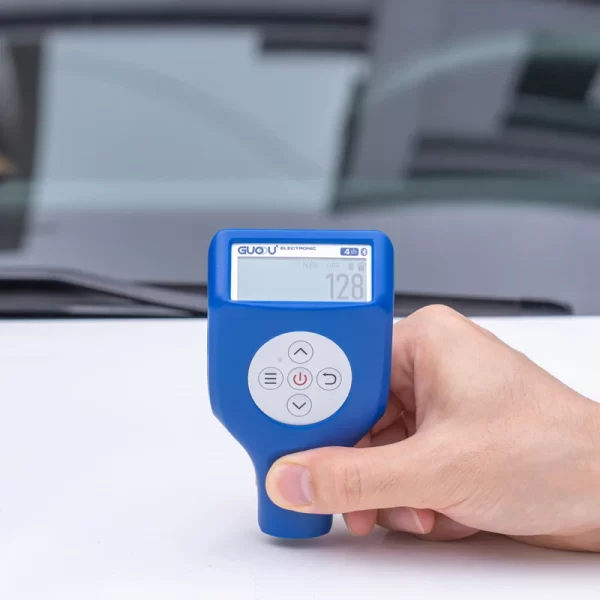

Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate.
- Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.
- Power voltage indicator.supply by USB 5V or 2 AA batteries (AA)
- Speaker beep while operating.
- Power-off automatically when idle; manually power-off available.
- Negative display function to ensure the accuracy of zero point calibration.
- Ultra-low power consumption, less than 10 μA in standby mode.
- Operation method: Graphic menu button operation
- Human-computer interaction: buttons, backlight dot matrix screen, light, buzzer
- Data transfer: USB, Bluetooth
PC software: Windows PC, Android App , iOS App
Measuring Range | ۰-۱۵۰۰µm (0-1.5mm) or 0-60mil | Resolution | ۰.۱µm (0-99.9 µm) and 1µm (over 100 µm) |
Color | Blue ,Black ,Red ,Yellow | Application | measuring coating thickness |
Accuracy | ±۱-۲% H H: coating thickness | Certification | CE, RoHS |
Power supply | ۲ x 1.5V AA Batteries or USB | Warranty | ۱ years |
Item Name | coating thickness gauge | Minimum Measurement Area | 5mm |
Minimum Sample Thickness | ۰.3mm | MOQ | ۱ Piece |
Model Number | GTS8102 | Operating Conditions | Temp: -10 – 50ºC and Humidity: < 85% |
Weight | 97g ( including batteries) | Dimensions | ۱۲۶ x 69 x 35mm |
