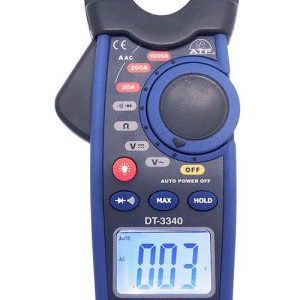

DT-3340/3341/3342/3343/3343T/3344/3345/3347/3347W
1000A AC, AC/DC True RMS Clamp Meters
DT-3340 Series Professional True RMS Clamp Meters provide accurate AC, AC/DC Current and Voltage readings regardless of waveforms. These meters can be used in most industrial and commercial applications where non-linear loads distort the Current or Voltage waveform.
Electronic overload protection
Data Hold function
DCA Zero function
Low battery indication
Auto Power Off
DT-3340 Series Professional True RMS Clamp Meters provide accurate AC, AC/DC Current and Voltage readings regardless of waveforms. These meters can be used in most industrial and commercial applications where non-linear loads distort the Current or Voltage waveform.
Electronic overload protection
Data Hold function
DCA Zero function
Low battery indication
Auto Power Off
| Specifications | |||||||||
| Function | Max. Range | Basic Accuracy | Max. Resolution | DT-3340 | DT-3341 | DT-3343 | DT-3343T | DT-3345 | DT-3347 3347W |
| Current DC | 1000A | ±(۲.۵%+5d) | 10mA | * | * | * | * | * | * |
| Current AC | 1000A | ±(۳.۰%+4d) | 10mA | * | * | * | |||
| Voltage DC | 600V | ±(۰.۸%+2d) | ۰.1mV | * | * | * | * | * | * |
| Voltage AC | 600V | ±(۱.۰%+4d) | ۰.1mV | * | * | * | * | * | * |
| Resistance | 40MΩ | ±(۱.۰%+4d) | ۰.۱Ω | 20M | * | * | * | * | * |
| Capacitance | 40mF | ±(۳.۰%+5d) | ۰.01nF | ۱۰۰µF | ۱۰۰µF | ۱۰۰µF | * | * | |
| Frequency | 10MHz | ±(۱.۲%+3d) | ۰.01MHz | * | 100kHz | 100kHz | 4kHz | 4kHz | |
| Duty Cycle | ۹۹.۹۰% | ±(۱.۲%+3d) | ۰.۱۰% | * | * | ||||
| Temperature | ۱۰۰۰ºC/ 1832ºF | ±(۳.۰%+5d) | ۱ºC/ºF | * | * | * | * | * | |
